GBC Burner
Gas Burners of the GBC / GBS – series are basing on the CONEFIRE®- Technology. In advance to conventional burners with a swirlplate- mixer GBC / GBS are direct ignitable over the complete
capacity range, a special start position, e.g. through bypass, is not required.

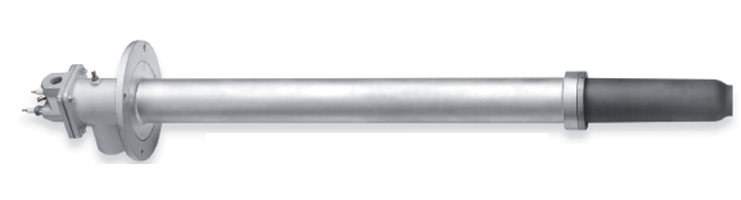

GBC-Burners are equipped with a ceramic flame tube which makes a burner tile obsolete.
Description
Gas Burner for heating industrial furnaces and process
engineering facilities
Power range 15 – 5000 kW
Wide control range
Direct electric ignition
Flame detection with ionisation rod, UV-probe possible
GBC version with ceramic flame tube
GBS version for burner tile or metallic flame tube
Various flame exit velocities and flame shapes are possible
Technical Data
GBC DIMENSIONS

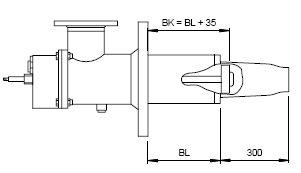

BURNER LENGTH
1. The position of the burner head is fixed at BK = BL 35.
2. The burner length corresponds to the length of the metallic
extension of the burner casing. The ceramic flame tubes have
a standard length of 300 mm (deviations on request).
The burner length may also be 0 (ex.: GBC 100 – 1L – 0/35).
