TRIO Automatic Burner Control System –
Single Stage Direct Ignition (direct ignited) and burner of any capacity when modulating
Flame supervision with UV-cell or ame rod (also single rod)
Programmable times and cycles
Suitable for Gas and Oil Burner
Front display indicating standby, operating and lockout positions
LED -bar flame signal indicator
Optional communication system with adjustable communication speed and highest stability
Pullout terminal blocks

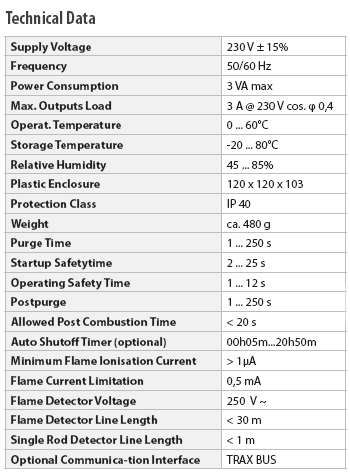

TRIO Conformities
Gas Equipment Directive 90/396/EEC
Low Voltage Equipment Directive 73/23 EEC
Machinery Directive 89/392/EEC
EMC-Directive 89/336/EEC
EN 298 Automatic gas burner control systems for gas burners and gas burning appliances with or without fans
EN 746-2 Industrial thermoprocessing equipment - Part 2: Safety requirements for combustion and fuel handling
Operation
Combustion air blower is turned on and process limits are controlled by external circuitry (see wiring). At power on the device per forms a selftest and displays messages if system failures are
detected. Once the equipment has been successfully tested, the device waits for manual startup (standby mode) or starts prepurge time (autostart mode) depending on the selected configuration.
A ame detection or simulation during prepurge time leads to lockout condition. If a stable flame has been detected the burner is regularly ignited. If the burner does not ignite within the safety
time the system locks out.
Flame quenching will lock the system and it can (depending on the selected confi guration)
