Solenoid Valve
Safety-Shut-Off SVB
Safety shut-off valve equipped with a powerful solenoid which pro-vides higher operating pressures and flow capacities. EC-type tested and certified design acc. to EN 161. SVB’s are suitable for
operation in industrial environments to control gases of the 1st, 2nd and 3rd family of gases and of air. Particularly designed for installation on industrial burners, atmospheric burners and forced
draught burners.
< 1 sec. (fast opening), adjustable opening time (slow opening series) 5 – 20 sec (80% of max. ow)
Closing Time:
< 1 sec.
Ambient Temperature:
-10… 60°C
Power Supply Volt.:
230 V A.C.,110 V A.C., 24 A.C.
Enclosure:
IP 54 – IEC 529,
Duty Cycle:
Continuous (100%)
slow opening with flow adjustment
on request
for 230 V / 50 - 60 Hz; 24 V 50 - 60 Hz, 115 V / 50 - 60 Hz on request

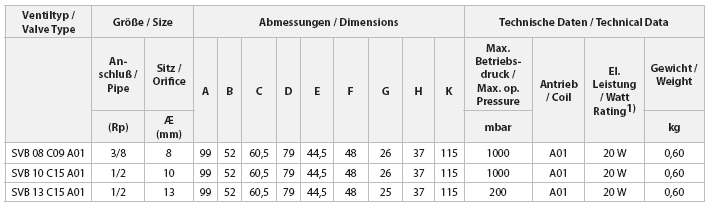

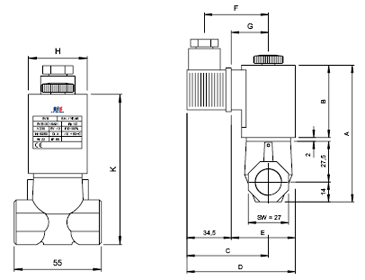

Subject to change without notice, in case of order a binding dimension drawing will be supplied
.
Solenoid Valve Safety-Shut-Off SVB
Valves SVA Maintenancefree class A safety shutoff valve acc. to EN 161 for automatic shutoff operation in industrial environments. EC-type tested and certified design. Singled seat, two-way valve is ideal for controlling 1st, 2nd and 3rd family gases as well as air. It's particu-larly suitable for use with Automatic Gas Burners of all types and for ON-OFF-pulse mode. EMC for Electromagnetic Compatibility certified.
Technical Description
Valve Body:
Brass
Valve Trim:
Stainless Steel
Valve Seat:
Buna N
Pipe Connections:
Rp 3/8” and Rp 1/2” acc. to ISO 7-1
Inlet pressure:
up to 1 bar (see data sheet)
Opening Time:
< 1 sec. (fast opening)
Closing Time:
< 1 sec.
Ambient Temperature:
-10… 60°C
Power Supply Volt.:
230 V A.C., 115 V A.C., 24 A.C. 50/60 Hz
Enclosure:
Continuous (100%)
Duty Cycle:
Continuous (100%)
Class B

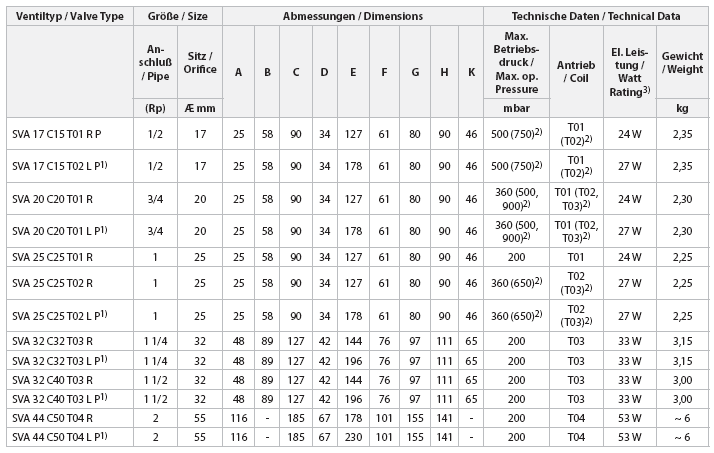

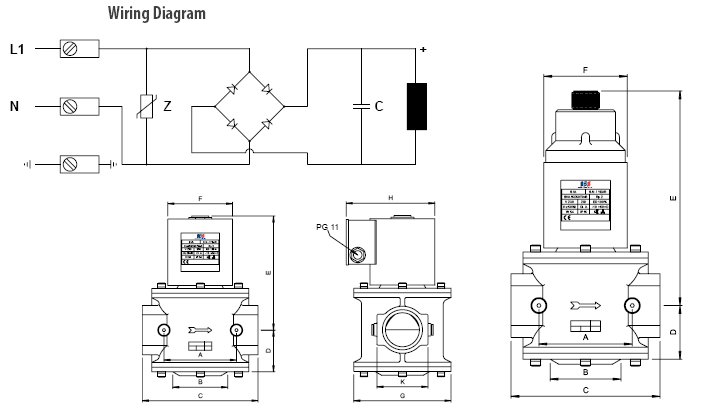

Subject to change without notice, in case of order a binding dimension drawing will be supplied.
